Introducing the 6 components of an LED panel
The components of the LED panel are the secret to the high quality of light and the lifespan of at least 25,000 hours in this LED ceiling light! The layers of the LED panel guarantee high light quality, light uniformity, and the reason for the popularity of the LED panel.
It's best to know right from the start that the LED panel structure is the same in all panels.
In this content on the BOCREAT blog, you will read a review of the components of an LED panel. But first, you will learn what an LED panel is and its benefits. Then, you will read about the frame , diffuser , light guide plate , light reflection plate , SMD chip , and finally the power supply .
By reading this content, we will learn about the ins and outs of a built-in and surface-mounted ceiling LED panel!
What is an LED panel and an introduction to the components of an LED panel?
LED panels are a family of ceiling lights that are built-in or surface-mounted. The layers of the LED panel play an important role in increasing lumens and distributing light evenly . Uniform light distribution means that the light is not dazzling and is not focused on a specific spot like a lamp.

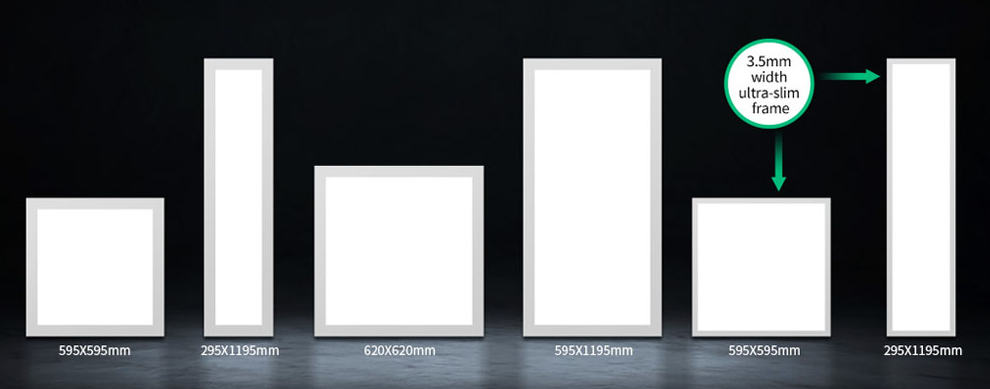

LED Panels produce more light than incandescent bulbs and are an alternative to old fluorescent lights. LED panels are designed and manufactured in square , rectangular and circular ceiling light shapes . Now it's time to name the components of the LED panel or the plastic parts of the light.

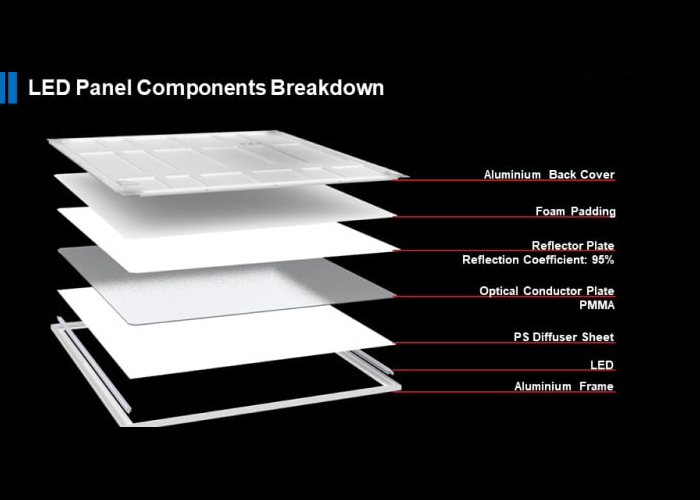

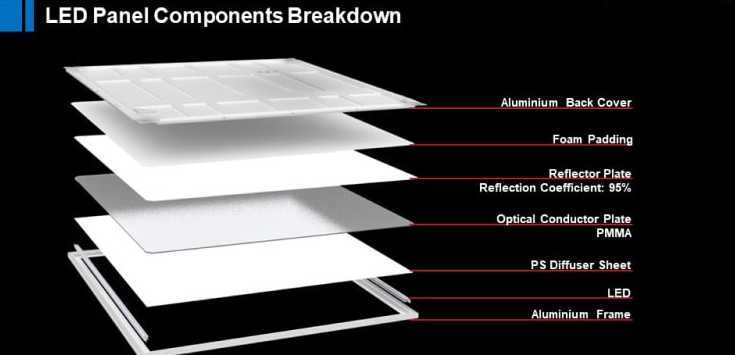

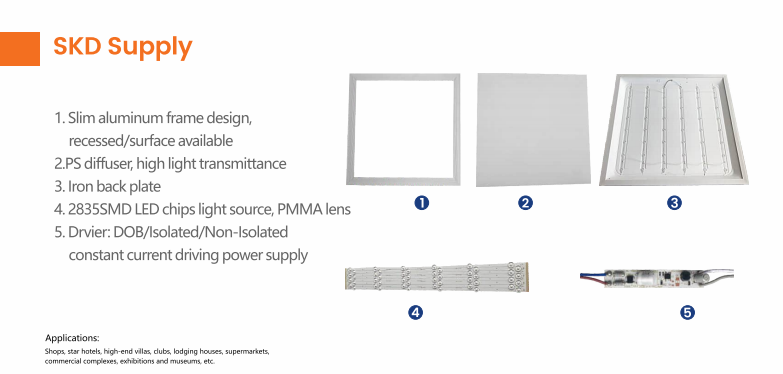

LED panel frame
Diffuser plate
Light guide plate or panel
LED panel light reflector
Chipset or SMD light source
LED panel power supply
The LED panel design is suitable for indoor spaces, both residential and commercial.
Don't worry, we will continue to examine all 6 layers of the LED panel in detail. In the next section, you will read the introduction of the 6 layers of the LED panel, as well as the function and features of each. Before starting, it is better to know that the three light guide plates , diffuser and light reflector ensure uniform light and better distribution.
1_LED panel frame

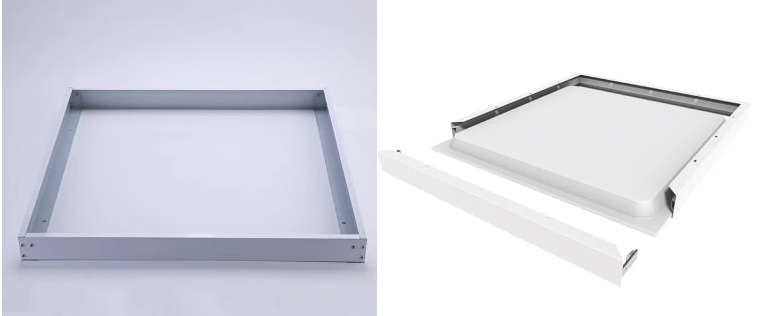

The front plate of an LED panel protects the internal components and prevents light from leaking out . Of course, this frame must also exchange heat with the outside environment to cool the panel.
BOCREAT uses impact-resistant ABS in its built-in and surface-mounted panels for added protection
The LED panel frame is also considered a type of packaging. Two types of aluminum or PVC plastic frames are used in the panel. The very light aluminum frame is used in the 60 x 60 panel. And in smaller panels, PVC is used due to its cheapness and inefficiency.
BOCREAT uses impact-resistant ABS for greater strength in the panel frame . The high-impact ABS compound protects the panel well and is also more cost-effective than aluminum.

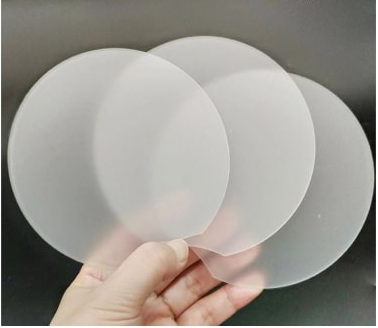

The diffuser is located in the last layer of light optimization to distribute and transmit light evenly across the panel surface. The diffuser layer is the third layer to enhance light quality and is located in the second layer of the panel after the frame.
LED panel diffusers are mostly made of acrylic materials , and the reason for this is their reasonable price and good light diffusion. Polycarbonate or PC and polystyrene PS are also used in LED panel diffusers.
BOCREAT uses polystyrene in its LED panel diffuser . In addition to being diffuse, polystyrene has a high light distribution. It also does not turn yellow after a while and is resistant to ultraviolet light.
3_LED Panel Lighting Guide Page or LGP

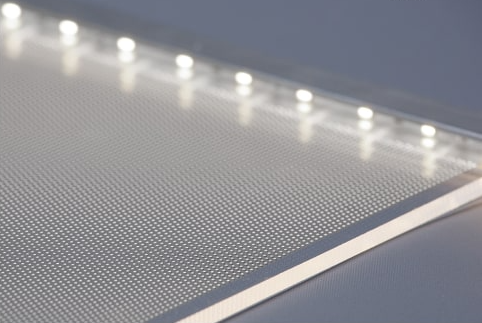

The Light Guide Plate (LGP) controls and optimizes the speed and quality of the output light. The Light Guide Panel (LGP) is located in the second light diffusion layer. The material used in PLG is methyl styrene (MS), polymethyl methacrylate (PMMA) or polystyrene (PS).
The use of this screen becomes clear when you know that in normal mode , SMD diodes produce light with a lot of glare . And the guide screen controls this glare and prevents white and black spots as well as eye fatigue.
The quality of the LED panel depends on the quality of the components that make up the LED panel, especially the panel guide plate.
4_Page linjection frame LED panels
5_Light source: LED panels or SMD chips

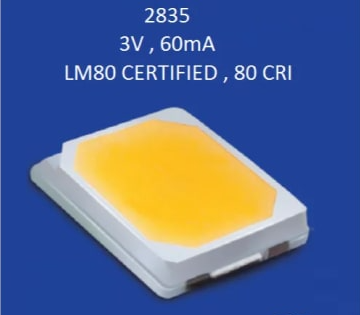

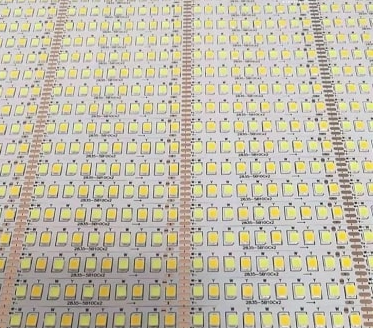

The SMD chip is the heart of the LED panel and its light generator. Most panels use the SMD2835 light chip . Using SMD technology provides better heat management, more lumens, higher efficiency and energy savings. Ultimately, using SMD technology increases assembly quality and reduces circuit size, along with reducing price.
6_LED panel power supply
The LED panel driver , or power supply, converts 220V city electricity into 12V direct current . 12V DC electricity must be produced without voltage and current fluctuations. The quality of the LED panel driver has a direct relationship with the flicker-free LED panel. Flickering means that the LED panel turns on or off very quickly. Flickering causes headaches and visual disturbances.
Introducing Sirox surface-mounted and recessed ceiling LED panels
BOCREAT is a manufacturer of LED panels with a lifespan of 25,000 hours and a 24-month warranty . BOCREAT produces recessed and surface-mounted LED panels or lights.
BOCREAT recessed and surface-mounted lights are produced in square, rectangular and circular shapes in three colors: sunlight , moonlight and ice white.
BOCREA's products in the built-in LED panel are as follows.
Round ceiling light
Square recessed ceiling light
Built-in 60*60 LED panel
Slim built-in circle panel
Circle built-in eco panel
Round glass ceiling light
LED eye light
LED spot lighT
BOCREAT products in the surface-mounted LED panel segment are as follows.
Square surface-mounted ceiling light
Round surface-mounted ceiling light
Microwave sensor ligh
The structure or components of the LED panel are the secret to the light distribution , strong light , and long life of the LED panel. In this article, we introduced the components of the LED panel and learned the uses and features of each. If you still have questions, send them to DURAMP in the CONTACT section.
